Why Does a Concrete Pump Truck Hydraulic System Overheat? Causes and Solutions

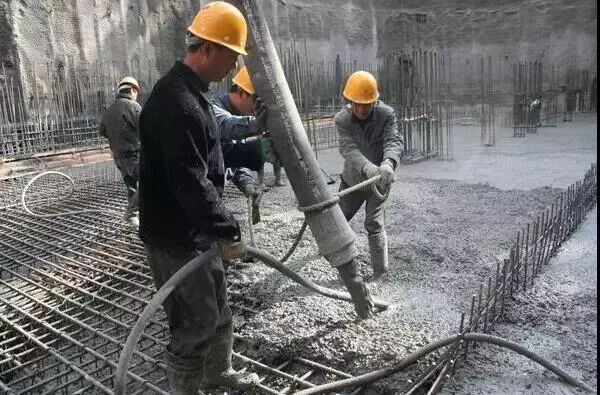

The hydraulic system is one of the most important components of a concrete pump truck. It provides the high-pressure power required to transport concrete through pipelines during construction.

Because concrete pumps usually operate with high pressure and large hydraulic flow rates, the hydraulic system generates a significant amount of heat during operation. If the heat cannot be effectively dissipated, the hydraulic oil temperature will continue to rise, causing reduced performance, increased component wear, and even system failure.

This article explains the main causes of concrete pump hydraulic system overheating and provides practical solutions.

Normal Hydraulic Temperature Range of a Concrete Pump Truck

During actual concrete pumping operations, many hydraulic systems can reach temperatures of around 60°C after approximately 40 minutes of operation. After several hours of continuous work, the thermal equilibrium temperature may exceed 70°C.

However, the normal operating temperature of a concrete pump hydraulic system should generally remain around 50°C.

When hydraulic oil temperature rises excessively, the system enters an overheating condition, which directly affects pumping efficiency and equipment reliability.

Effects of Hydraulic System Overheating

Excessive hydraulic temperature can cause several problems:

1. Reduced Hydraulic Oil Viscosity

When hydraulic oil temperature increases, oil viscosity decreases. This results in:

• Increased internal leakage of hydraulic pumps

• Reduced actual pump flow

• Lower pumping efficiency

2. Damage to Hydraulic Seals

High temperatures accelerate aging of hydraulic seals.

The effects include:

• Reduced elasticity of sealing materials

• Poor sealing performance

• Increased oil leakage

• Possible seal failure

3. Hydraulic Valve Failure

Different materials used for valve spools and valve bodies may expand differently when exposed to high temperatures.

This thermal expansion can cause:

• Valve spool sticking

• Hydraulic valve malfunction

• Complete interruption of concrete pumping operation

4. Accelerated Component Wear

As hydraulic oil viscosity decreases, lubrication performance is reduced.

This causes:

• Faster wear of hydraulic components

• Shorter service life

• Increased maintenance costs

In severe cases, operators may need to stop the concrete pump truck frequently to allow the hydraulic system to cool down, reducing equipment availability and affecting construction progress.

Main Causes of Concrete Pump Hydraulic System Overheating and Solutions

The causes of hydraulic overheating can generally be divided into two categories:

1. Problems caused by hydraulic system design

2. Problems caused by component failure or improper operation

Different causes require different solutions.

1. Incorrect Hydraulic Oil Selection

Cause

Using hydraulic oil with an unsuitable viscosity can cause overheating.

When the system starts at a lower temperature, the pump may operate normally. However, as the oil temperature rises, the viscosity decreases, increasing internal leakage.

The increased leakage generates more heat, creating a cycle of continuous temperature rise.

Solution

Select hydraulic oil with the correct viscosity according to:

• System working pressure

• Operating temperature

• Equipment load requirements

Using the recommended hydraulic oil type is essential for maintaining stable system performance.

2. Improper Hydraulic Oil Tank Design

Cause

The hydraulic oil tank has multiple functions:

• Storing hydraulic oil

• Dissipating heat

• Separating contaminants

• Allowing water and impurities to settle

An improperly designed oil tank can reduce cooling efficiency.

Common problems include:

• Oil tank capacity being too small

• Insufficient heat dissipation area

• Suction and return pipes installed too close together

• Lack of internal separation plates

These issues shorten the cooling circulation path and may cause hot return oil to enter the suction line directly.

Solution

Improve oil tank design by:

• Increasing oil tank capacity

• Increasing the distance between suction and return ports

• Installing a separation baffle between suction and return areas

• Ensuring sufficient heat dissipation capability

3. Insufficient Cooling Capacity

Cause

Concrete pump trucks generally use either:

• Air-cooled hydraulic oil coolers

• Water-cooled hydraulic oil coolers

If the cooler is installed incorrectly or the cooling flow is insufficient, the hydraulic system temperature will increase.

For example, installing the cooler only in a small auxiliary return circuit may not provide enough cooling for the entire hydraulic system.

Solutions

Recommended improvements include:

• Installing an independent cooling circuit

• Installing the cooler in the main return oil circuit

• Increasing cooling flow capacity

• Ensuring proper cooling fan speed

Regular inspection and cleaning of the hydraulic cooler are also necessary to maintain heat transfer efficiency.

4. Incorrect Hydraulic Component Selection

Cause

Concrete pump hydraulic systems require high pressure and large flow capacity.

If hydraulic components such as:

• Directional control valves

• Relief valves

• Sequence valves

are undersized, excessive oil flow speed through valve openings will create large pressure losses.

Pressure loss is converted into heat, causing hydraulic oil temperature to rise.

Solution

Select hydraulic components according to:

• Maximum operating pressure

• Maximum flow rate

• Required pressure adjustment range

Proper component sizing reduces pressure loss and prevents unnecessary heat generation.

5. Improper Pipeline Design or Installation

Cause

Hydraulic pipelines that are incorrectly designed can create excessive pressure losses.

Common issues include:

• Pipe diameter too small

• Excessive oil flow speed

• Sharp bends in pipelines

• Poor installation layout

These problems increase resistance and convert hydraulic energy into heat.

Solution

Ensure that:

• Pipe diameter matches working pressure and flow requirements

• Pipeline routing is smooth

• Sharp bends are minimized

• Natural heat dissipation is maintained

Hydraulic System Overheating Caused by Operation or Component Failure

1. Low Hydraulic Oil Level

Cause

If the oil level in the hydraulic tank is below the recommended range, the tank cannot dissipate heat effectively.

Solution

Regularly check hydraulic oil level and keep it within the specified operating range.

2. Reduced Hydraulic Cooler Performance

Causes

Cooling efficiency may decrease due to:

• Internal blockage inside the cooler

• Dirt accumulation on the cooler surface

• Poor ventilation

• Incorrect operation of safety valves or check valves

Solutions

Operators should:

• Clean cooler surfaces regularly

• Check for internal blockage

• Maintain proper airflow

• Inspect and adjust cooler protection valves

A clean and efficient cooler is essential for maintaining hydraulic oil temperature.

3. Incorrect Hydraulic Pressure Adjustment

Cause

Improper adjustment of hydraulic pressure valves can create unnecessary heat.

Examples:

• Relief valve pressure set too low → frequent overflow and energy loss

• Pressure set too high → increased leakage and overheating

Solution

Adjust hydraulic system pressure according to manufacturer specifications and actual load requirements.

For closed-loop pumping systems, the heat exchange circuit pressure must also be correctly adjusted. Incorrect settings may cause either excessive hydraulic impact or unnecessary overflow losses.

4. Increased Internal Leakage of Hydraulic Components

Cause

Internal leakage may occur in:

• Hydraulic pumps

• Hydraulic cylinders

• Hydraulic motors

• Hydraulic valves

When pressurized oil leaks internally, pressure energy is converted into heat.

Symptoms

Increased internal leakage may cause:

• Higher oil temperature

• Reduced system pressure

• Weak pumping force

• Lower concrete pumping output

• Reduced mixing performance

Solution

Regularly inspect hydraulic components and:

• Replace damaged seals

• Repair worn parts

• Replace severely damaged hydraulic components

Preventive maintenance can significantly reduce overheating problems.

How to Prevent Hydraulic Overheating in Concrete Pump Trucks

To reduce hydraulic system temperature and improve equipment reliability, operators should:

• Use the correct hydraulic oil

• Maintain proper oil level

• Clean hydraulic coolers regularly

• Check hydraulic pressure settings

• Inspect hydraulic components periodically

• Repair leaks immediately

• Follow manufacturer maintenance requirements

Conclusion

Hydraulic system overheating is one of the most common problems affecting concrete pump truck performance and reliability. Excessive hydraulic oil temperature can reduce pumping efficiency, accelerate component wear, and increase maintenance costs.

For manufacturers, optimizing hydraulic system design, cooling capacity, and component selection is essential. For equipment users, correct operation, regular inspection, and preventive maintenance are the keys to avoiding overheating problems.

By identifying the root cause and applying the correct solution, hydraulic temperature can be effectively controlled, improving concrete pump availability, extending service life, and ensuring smoother construction operations.
