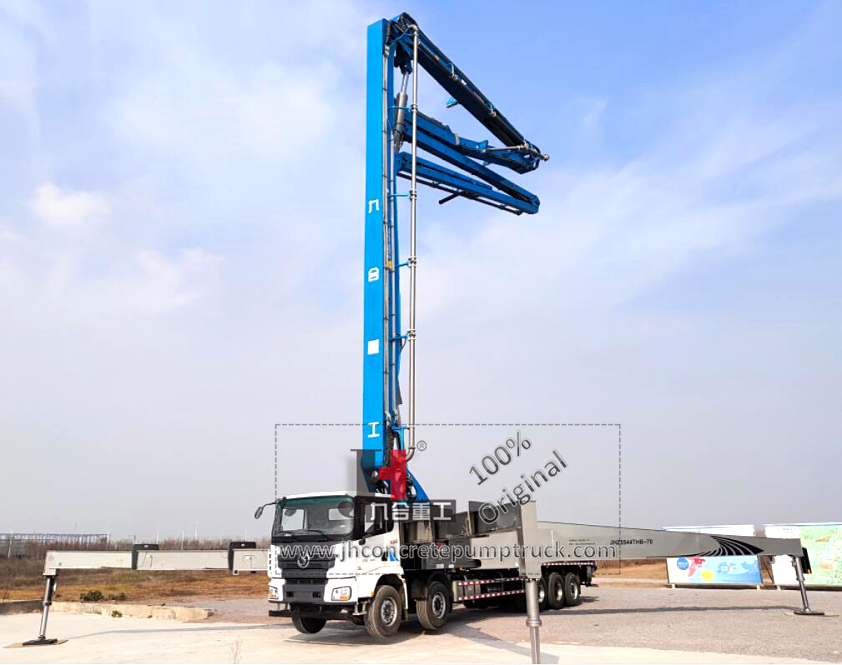

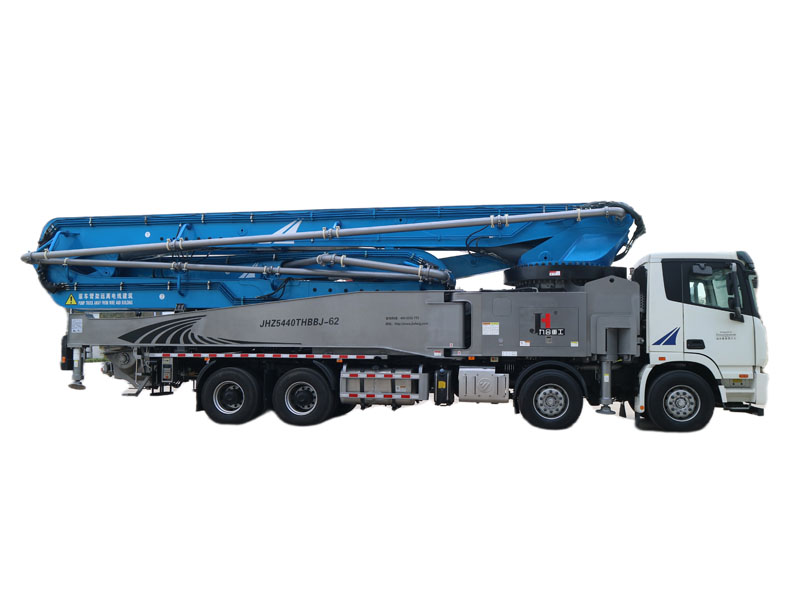

JH concrete pump trucks are competitive products designed by JIUHE MACHINERY.it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumpingsystem. Jib structures are flexible, the trucks move easily, safe and stable

Share:

Description:

JIUHE Concrete Pump Truck Advantages



Intelligence

Full hydraulic control technology

Fast fault location, saving time more than 50% in fault detection.

Electric control system

Intelligent electric control system, simple structure, reducing electric faults.

Safety

Hydraulic oil level Auto-detection and radiating technology

Auto-detect hydraulic oil and temperature, protecting hydraulic system.

Intelligent safety technology

All weld lines by 100% nondestructive flaw detection.

High efficiency

Full hydraulic commutation technology

Commutation time 10% lower, pumping efficiency 20% higher.

Advance Jib structure technology

Flexible and efficient placing, no blind angle.



specification:

I. Chassis
1Chassis BrandShacman
2Driving type10*4
3Power510HP
II. Boom system
1Max. Vertical height(M)69.3
2Max. Horizontal Concrete Placing radius (M)65.3
3Concrete placing depth(M)51.8
4Boom control modeElectricity proportion
5Boom Number6
6Fold modeRZ
7tower rotation angle(°)±270
8Legs modeX-R
9Rubber hose length(MM)3000
4Concrete delivery pipe dia. (MM)125
III. Electric Control   System
1Working voltage(V):         24
2Remote controlHBC
IV. Hydraulic transmission   system
1Type of hydraulic systemOpen type
2System working pressure (Mpa)32
3Hydraulic fuel tank capacity (l)880
4Cooling mode of hydraulic oilForced-air Cooling
VI. Pumping system
1Form of concrete distribution valveS Valve
2Feeding height (mm)1500
3Concrete cylinder260
4Hopper capacity (M3 )0.6
5Slump of pumped concrete160-220
6Dimension of allowable maximum aggregate   (MM)40
7Lubricating methodCentralized lubrication

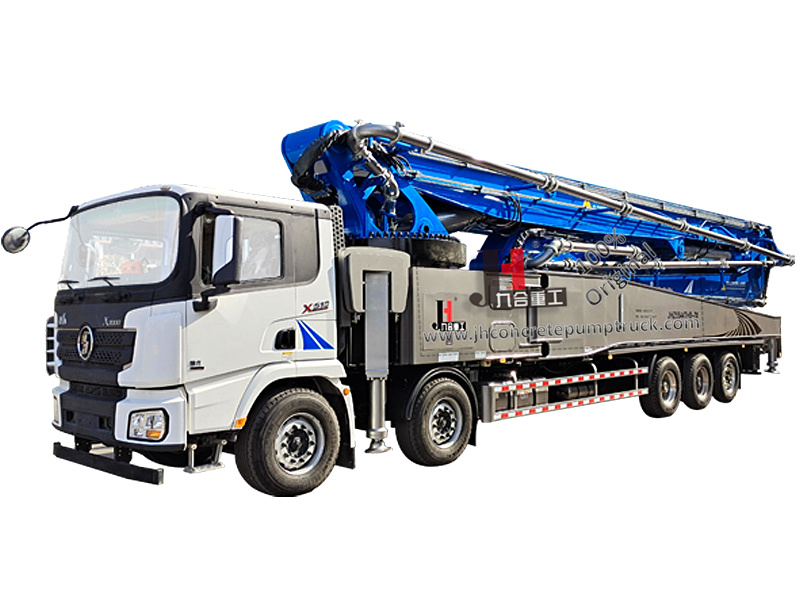

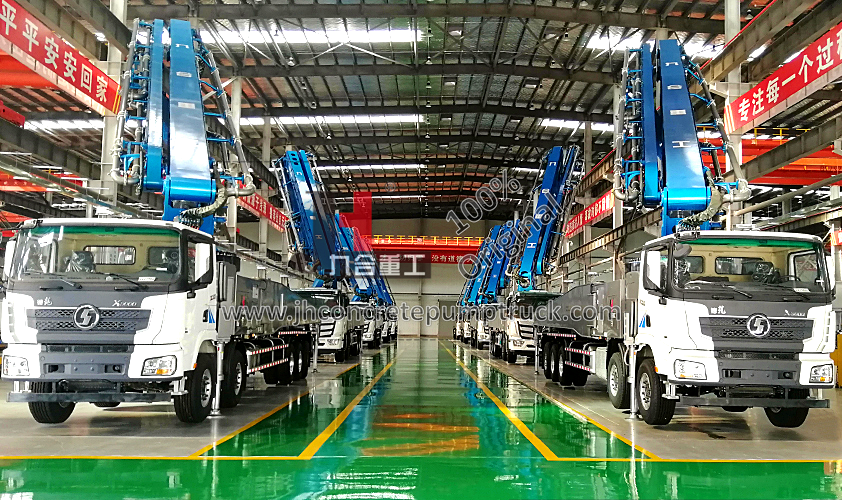

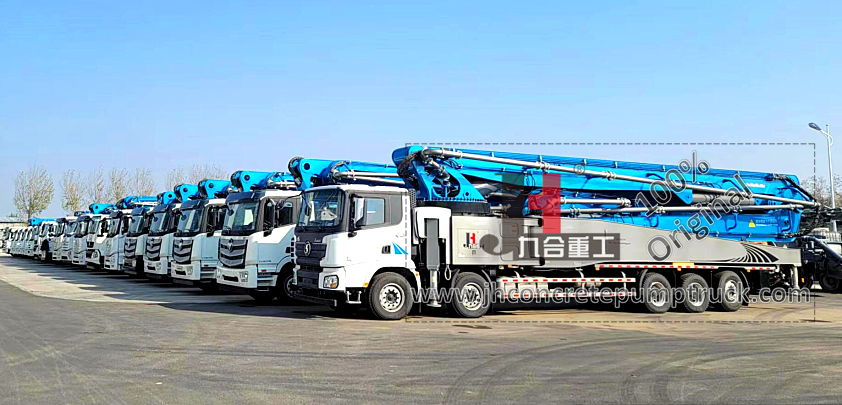

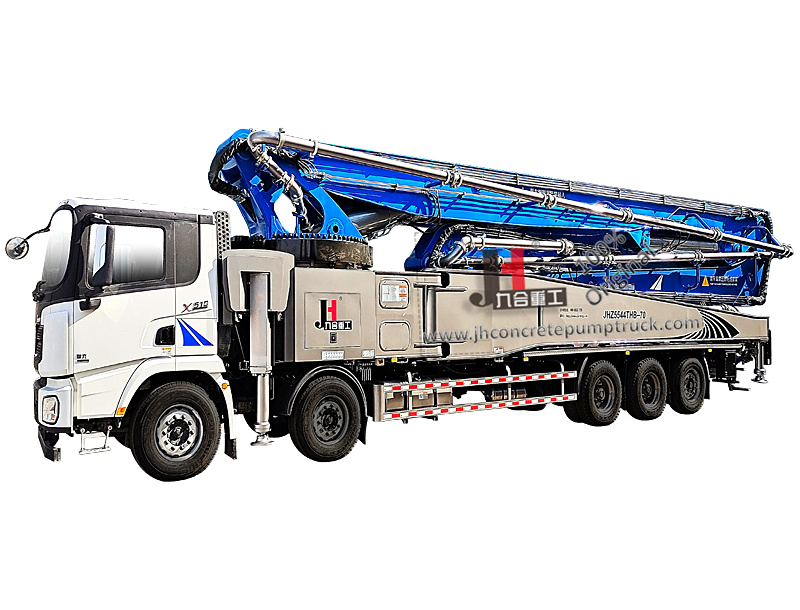

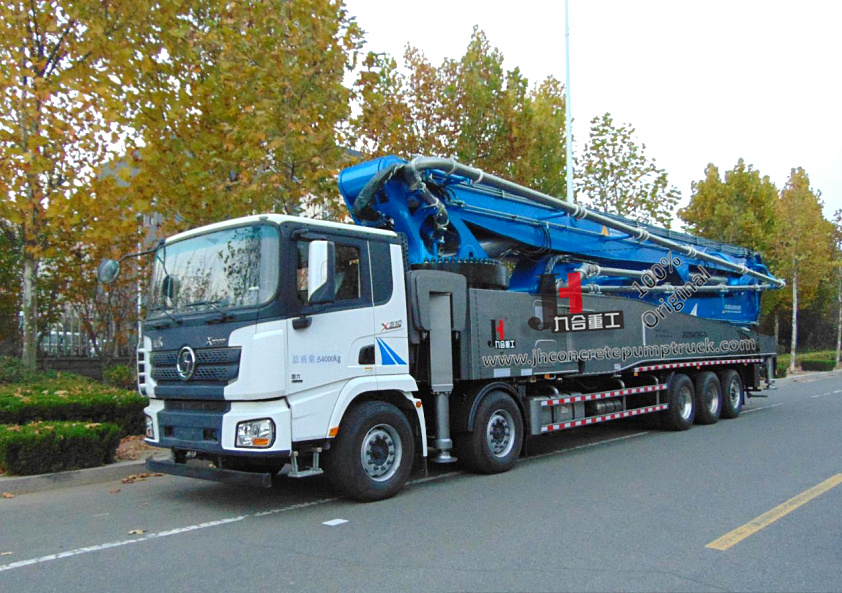

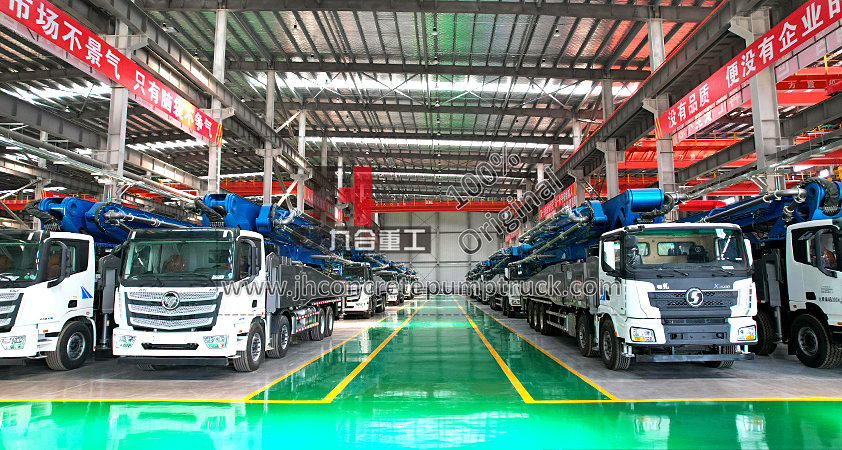

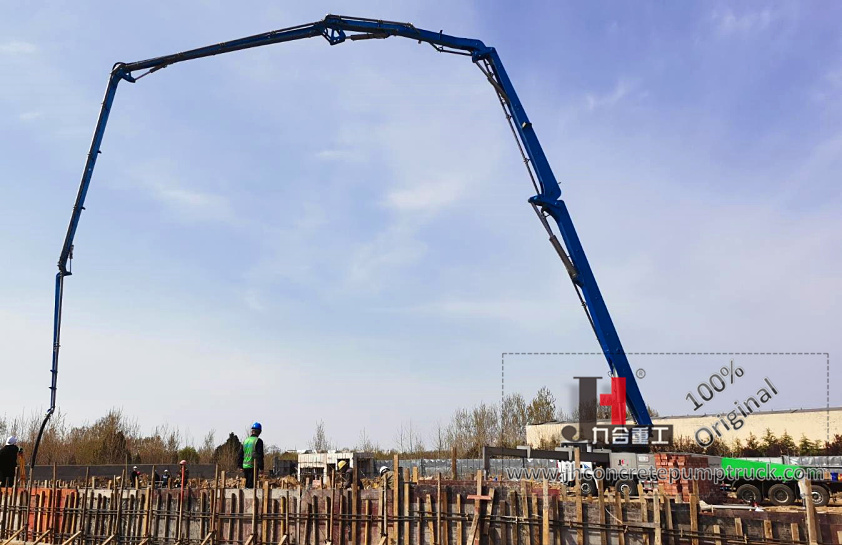

PHOTOS
