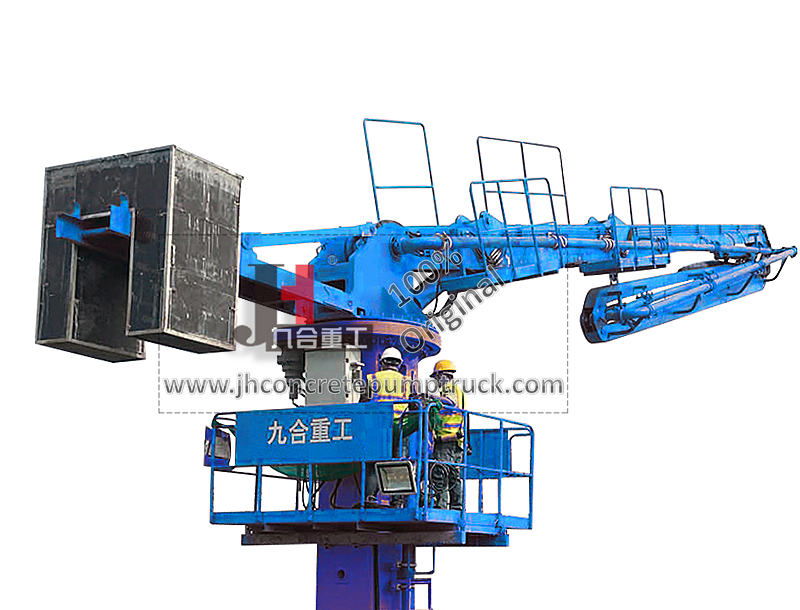

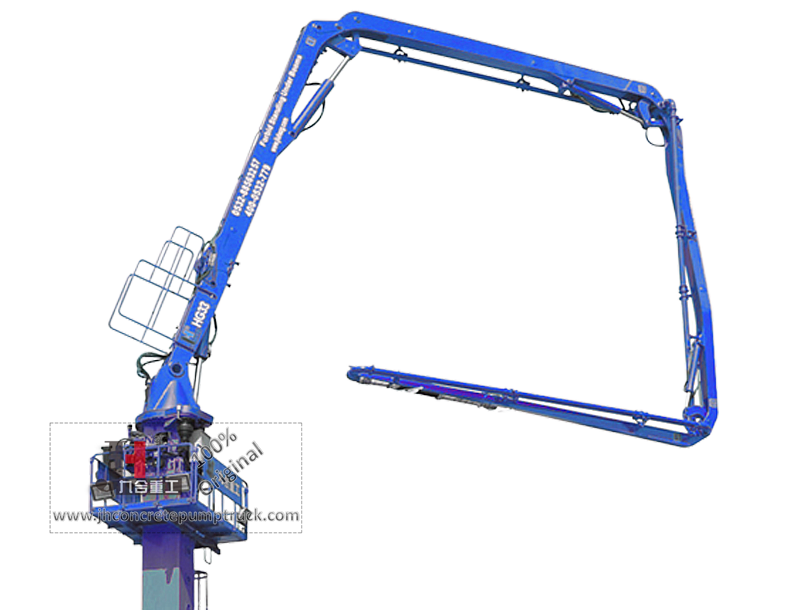

Mobile Concrete Placing Boom

HGY15 HGY17 are mobile concrete placing boom with concrete placing radius 15m and 17m, used for placing concrete onto certain place of certain floor, which is good partner with trailer concrete pump.



Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.



Technical Parameters:

Max. placing radius15m17m
Big arm length6m6.66m
Medium arm length5m5.73m
Small arm length4m4.61m
Big arm elevation0-70°0-70°
Medium arm elevation0-180°0-180°
Small arm elevation0-180°0-180°
Tail Rotary radius2.81m3.5m
Max. theory delivery pressure24Mpa25Mpa
Rotation range360°360°
Overall height2.6m3.2m
Inner Dia. of delivery pipe125mm125mm
Rated voltage380V380V
Total power4KW5.5KW
Rated revolution0.3-0.8r/min0.3-0.8r/min
Type of hydraulic oil circuitOpen circuitOpen circuit
Type of hydraulic oilHM-N46HM-N46
Allowed max. aggregate diameter40MM40MM
Length of rubber hose3M3M
Weight( self-weight)3300KG5000KG
Weight(total weight)5500KG7200KG


Mobile Concrete Placing BoomMobile Concrete Placing Boom

Mobile Concrete Placing BoomMobile Concrete Placing Boom

HGY17 Mobile Concrete Placing Boom
