HBT and DHBT Series Concrete Pump Hydraulic system Advantages
Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.
Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.
Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.
Reduce maintenance costs
Full hydraulic commutation system, deleting four parts extremely damageable in the electronic commutation system, reduces equipment maintenance costs.
specification:
| Item | Unit | Parameter | ||
| Whole machine performance | Theoretical max. delivery volume | m³/h | 50 | |
| Theoretical max. delivery pressure | Mpa | 12 | ||
| Max. Delivery frequency | times/min | 20 | ||
| Theoretical max. Delivery distance | Vertical | m | 150 | |
| Horizontal | m | 350 | ||
| Type of distribution valve | S tube valve | |||
| Specification of delivery cylinder | mm | Φ200×1200 | ||
| Specification of main oil cylinder | mm | Φ125/Φ80×1200 | ||
| Oil tank capacity | L | 300 | ||
| Hopper capacity | L | 600 | ||
| Feeding height | mm | 1400 | ||
| Outlet opening Diameter | mm | Φ150 | ||
| Inner dia. of delivery pipe | mm | Φ125 | ||
| Power system | Main Motor power | Kw | 55 | |
| Rated voltage | V | 380 | ||
| Rated speed | r/min | 1480 | ||
| Hydraulic system | Hydraulic oil circuit type | Open circuit | ||
| Max. Oil pressure of pumping system | MPa | 28 | ||
| Max.oil pressure of mixing system | MPa | 14 | ||
| Max. Mixing speed | r/min | 24 | ||
| Other parameters | Allowed range of concrete slump | mm | 80～200 | |
| Max. Aggregate diameter | mm | Pebble 40，crushed stone 30 | ||
| Dimension(length×width×height) | mm | 5270×2000×1840 | ||
| Overall weight | Kg | 3500 | ||
| Pulling speed | Km/h | ≤8 | ||

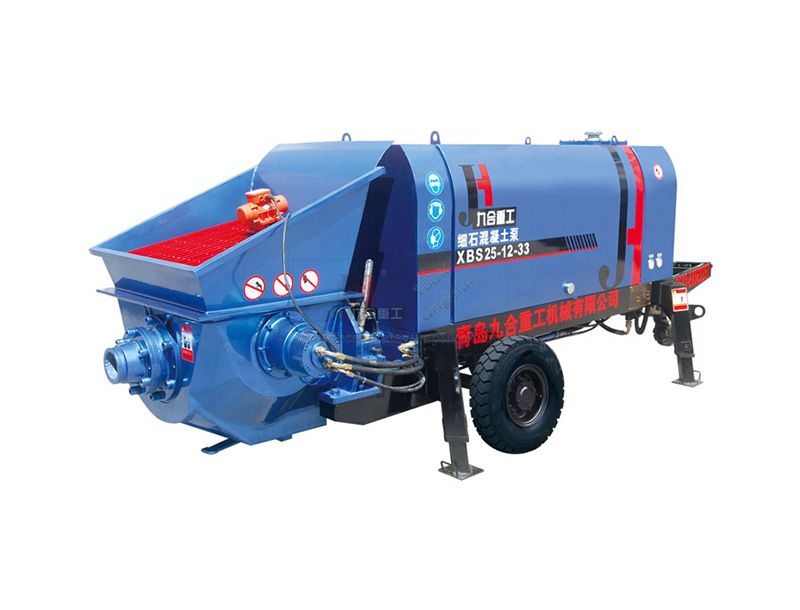

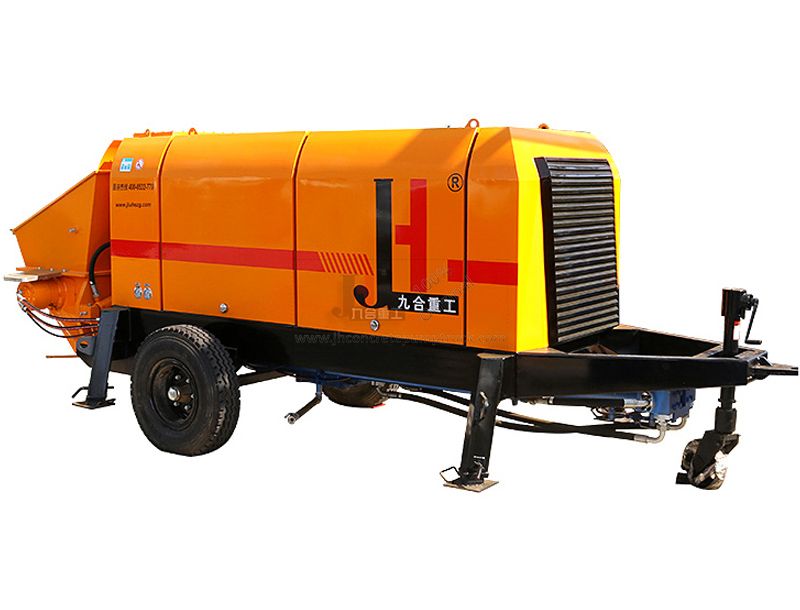

PHOTOS:
