Description:

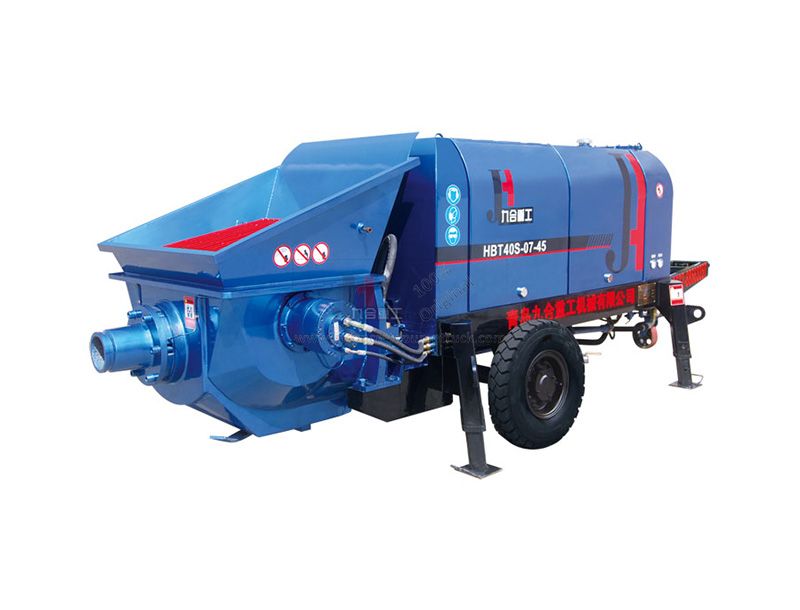

HBT and DHBT Series Concrete Pump Configuration
Power system
Motor: We adopt the world-famous brands-Yantai motors and Beide motors of Siemens.
Diesel: We adopt original VOLVO, DEUTZ and LOVOL diesel engines.
Main oil pump
The main oil pump is optional: German HAWE, Rexroth, Japanese Kawasaki, Korean Handok series.
Radiator
The radiator is air-cooled type, enabling the machine to work under the allowable highest temperature.
Lubrication system
Centralized lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set. So the oiling is accurate and the oil consumption can be saved.
specification:
| Item | Unit | Parameters | |
| Whole machines performance | Max. Theoretic delivery volume | m³/h | 40 |
| Max. Theoretic delivery pressure | Mpa | 07 | |
| Max. Delivery frequency | times/min | 24 | |
| Max. Theoretic delivery height | m | 150 | |
| Max. Theoretic delivery distance | m | 400 | |
| Type of distribution valve | S tube valve | ||
| Specification of delivery cylinder | mm | Φ160×1200 | |
| Specification of main oil cylinder | mm | Φ100/Φ70×1200 | |
| Oil tank capacity | L | 300 | |
| Hopper capacity | L | 400 | |
| Feeding height | mm | 1400 | |
| Outlet opening diameter | mm | Φ125 | |
| Inner diameter of delivery pipe | mm | Φ100 | |
| Power system | Main Motor power | Kw | 45 |
| Rated voltage | V | 380 | |
| Rated speed | r/min | 1480 | |
| Hydraulic system | Hydraulic oil circuit type | Open circuit | |
| Max. Oil pressure of pumping system | MPa | 25 | |
| Max. Oil pressure of mixing system | MPa | 14 | |
| Max. Mixing speed | r/min | 30 | |
| Other parameters | Allowed range of concrete slump | mm | 80～200 |
| Max. Aggregate diameter | mm | ≤30 | |
| Dimension(length×width×height) | mm | 4970×1680×2580 | |
| Overall weight | Kg | 3200 | |
| Pulling speed | Km/h | ≤8 | |
