Wheel concrete placing boom

JIUHE wheel type mobile concrete placing boom with concrete placing radius 15m 17m, used for placing concrete onto certain place, which is good partner with trailer concrete pump.easy to move and operate.

Share:

Description:

Wheel type mobile Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.


specification:

Technical Parameters:

ItemHGY15 wheel typeHGY17 wheel type
Max. placing radius15m17m
Big arm length6m6.66m
Medium arm length5m5.73m
Small arm length4m4.61m
Big arm elevation0~70°0~70°
Medium arm elevation0~180°0~180°
Small arm elevation0~180°0~180°
Wheel base4185mm4380mm
Tail Rotary radius2810mm3500mm
Total Power4kw5.5kw
System Pressure25mpa25mpa
Rotary range0~360°0~360°
Rotating speed0.3-0.8m/s0.3-0.8m/s
Outrigger span4300mm4500mm
Overall height2597mm2597mm
Total weight4500mm5600mm
Counter weight2200kg2200kg
 Dimension9800x2200x2640010130x2300x26400
Control modePanel/ Wireless remote controlPanel/ Wireless remote control


Photos:

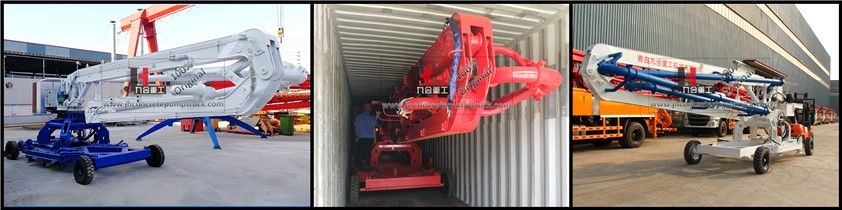

HGD15 wheel mobile concrete placing boom
