  • 38M

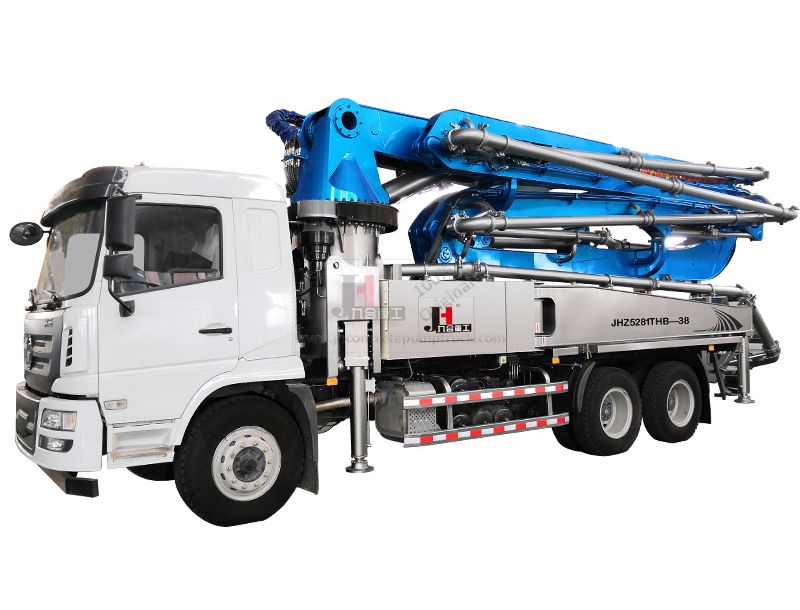

38M

JH concrete pump trucks are competitive products designed by JIUHE MACHINERY.it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumpingsystem. Jib structures are flexible, the trucks move easily, safe and stable

Share:

Description:

JH concrete pump trucks Advantages



Intelligence

Full hydraulic control technology

Fast fault location, saving time more than 50% in fault detection.

Electric control system

Intelligent electric control system, simple structure, reducing electric faults.



Safety

Hydraulic oil level Auto-detection and radiating technology

Auto-detect hydraulic oil and temperature, protecting hydraulic system.

Intelligent safety technology

All weld lines by 100% nondestructive flaw detection.



High efficiency

Full hydraulic commutation technology

Commutation time 10% lower, pumping efficiency 20% higher.

Advance Jib structure technology

Flexible and efficient placing, no blind angle.


specification:

I.   Chassis
1Chassis BrandSINOTRUK/SHCMAN
2Engine Power310HP/300HP
II.   Boom system
1Max. Vertical   height(M)38
2Max. Horizontal   Concrete Placing radius (M)34
3Concrete placing   depth(M)25
4Control modeElectric   proportion
5Folding type of   boomRZ type
6Folding type of   boom360°
7Opening mode of   landing legX-R
8Length of end   hose (MM)3000
9Concrete delivery   pipe dia.  125
III.   Electric Control System
1Working voltage(V):       24
IV.   Hydraulic transmission system
1Type of hydraulic   systemOpen type
2System working   pressure (Mpa)31.5
3Displacement of   main hydraulic oil pump (ml/r)    190
4Hydraulic fuel   tank capacity (l)600
5Cooling mode of   hydraulic oilForced-air   Cooling
6High-low pressure   changeover valveNone
VII.   Pumping system
1Form of concrete   distribution valveS Valve
2concrete cylinder230
3Maximum feeding   height (MM)        1500
4Hopper capacity   (M3 )0.65
5Slump of pumped concrete160-220
6Dimension of   allowable maximum aggregate (MM)40


PHOTOS

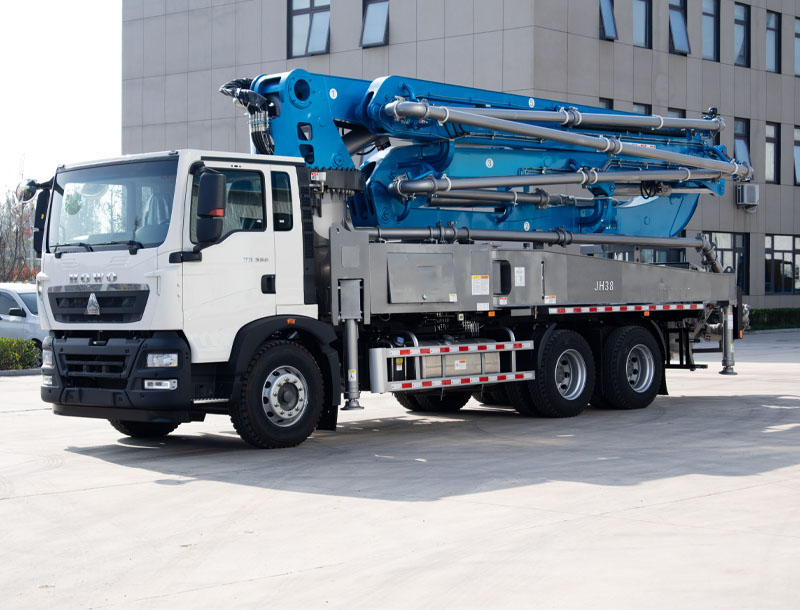

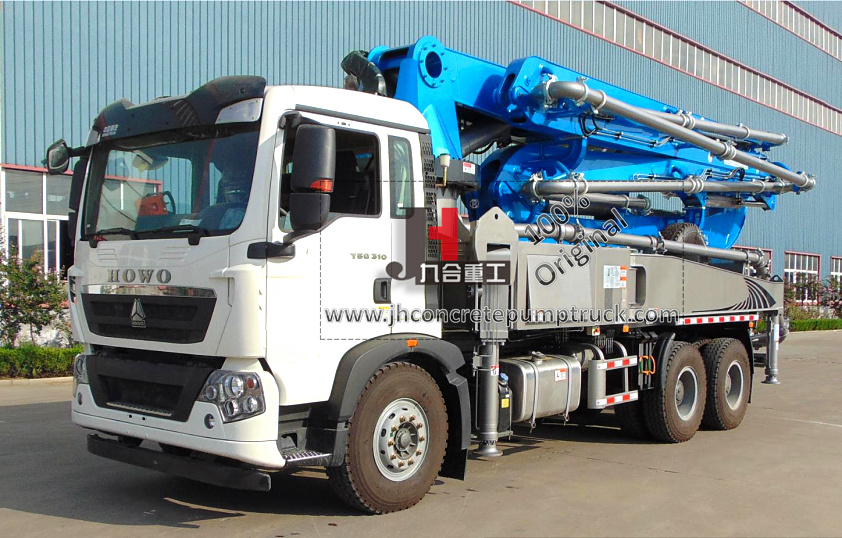

38M

38M

38M
