Description:

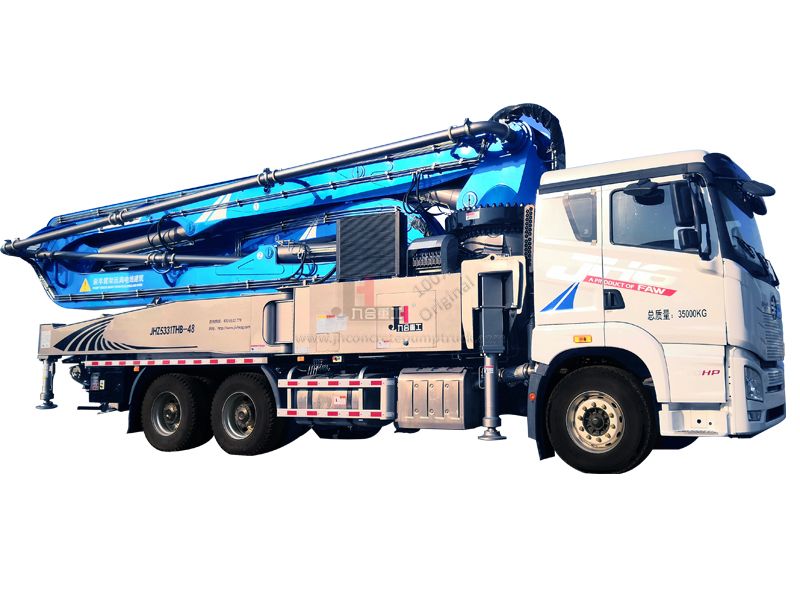

JH concrete pump trucks Advantages:
Intelligence
Full hydraulic control technology
Fast fault location, saving time more than 50% in fault detection.
Electric control system
Intelligent electric control system, simple structure, reducing electric faults.
Safety
Hydraulic oil level Auto-detection and radiating technology
Auto-detect hydraulic oil and temperature, protecting hydraulic system.
Intelligent safety technology
All weld lines by 100% nondestructive flaw detection.
High efficiency
Full hydraulic commutation technology
Commutation time 10% lower, pumping efficiency 20% higher.
Advance Jib structure technology
Flexible and efficient placing, no blind angle.
specification:
| I. Chassis | ||
| 1 | Chassis Brand | FAW |
| 2 | Engine Power | 420HP |
| II. Boom system | ||
| 1 | Max. Vertical height(M) | 48 |
| 2 | Max. Horizontal Concrete Placing radius (M) | 42.9 |
| 3 | Concrete placing depth(M) | 32.7 |
| 4 | Control mode | Electric proportion |
| 5 | Folding type of boom | RZ type |
| 6 | Rotating angle of turret | 360° |
| 7 | Opening mode of landing leg | X-R |
| 8 | Length of end hose (MM) | 3000 |
| 9 | Concrete delivery pipe dia. | 125 |
| III. Electric Control System | ||
| 1 | Working voltage（V）: | 24 |
| IV. Hydraulic transmission system | ||
| 1 | Type of hydraulic system | Open type |
| 2 | Hydraulic fuel tank capacity (l) | 600 |
| 3 | Cooling mode of hydraulic oil | Forced-air Cooling |
| 4 | High-low pressure changeover valve | None |
| VII. Pumping system | ||
| 1 | Form of concrete distribution valve | S Valve |
| 2 | Concrete cylinder | 230 |
| 3 | Maximum feeding height (MM) | 1500 |
| 4 | Hopper capacity (M3 ) | 0.65 |
| 5 | Slump of pumped concrete | 80-220 |
| 6 | Dimension of allowable maximum aggregate (MM) | 40 |
| 7 | Lubricating method | Centralized lubrication |
